NOVOTECHNIK | RSC6600
작성자 관리자

＊ 주요정보

Maker
NOVOTECHNIK
Model
RSC6600
Range
350° (factory programmable), other angles on request
Output
analog voltage
PDF
Description

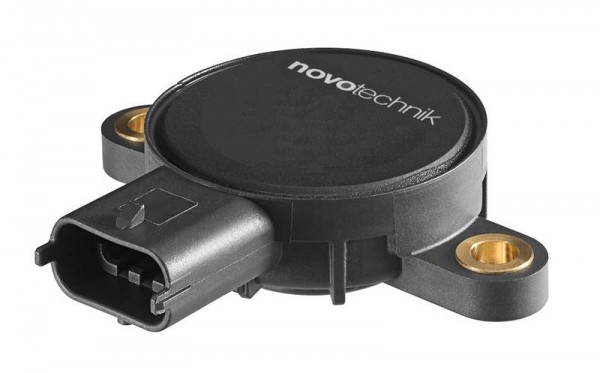

NOVOHALL Rotary Sensor non-contacting

＊ 추가설명

RSC6600

Web site : https://www.novotechnik.de/en/home/

features
●  non-contacting, Hall-effect magnetic principle
●  electrical range up to 360°
●  analog voltage output
●  high temperature range, -40 to +140 °C
●  captive magnetic marker provides easy mounting
●  protection class IP67 (mounted with o-ring)
●  integrated 3-pin Bosch connector
●  long life - no shafts or dynamic seals to wear
●  very favorable price / perfomance ratio
