토크센서

계측센서 토크센서
HITEC | 01424
작성자 관리자

＊ 주요정보

Maker
HITEC
Model
01424
Range
50 in.oz - 100,000 in.lb
Output
+/-5V or +/-10V
PDF
Description

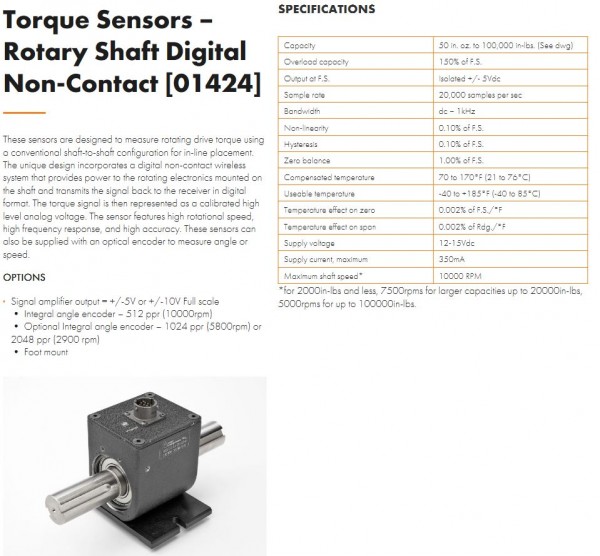

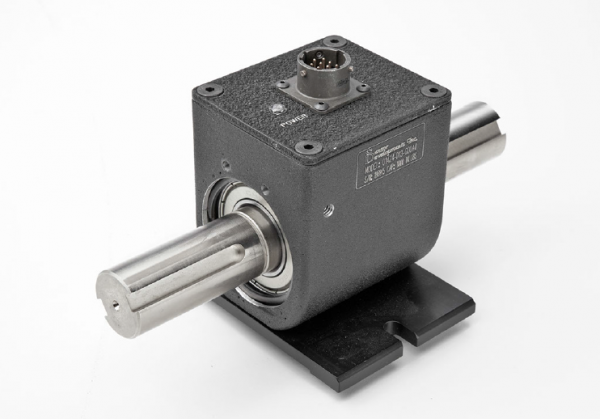

Torque Sensors – Rotary Shaft Digital Non-contact

＊ 추가설명

01424

Web site : https://www.hitecsensors.com/

FEATURES
These sensors are designed to measure rotating drive torque using a conventional shaft-to-shaft configuration for in-line placement. The unique design incorporates a digital non-contact wireless system that provides power to the rotating electronics mounted on the shaft and transmits the signal back to the receiver in digital format. The torque signal is then represented as a calibrated high level analog voltage. The sensor features high rotational speed, high frequency response, and high accuracy. These sensors can also be supplied with an optical encoder to measure angle or speed.

OPTIONS
●  Signal amplifier output = +/-5V or +/-10V Full scale
●  Integral angle encoder – 512 ppr (10000rpm)
●  Optional Integral angle encoder – 1024 ppr (5800rpm) or 2048 ppr (2900 rpm)
●  Foot mount
