토크센서

계측센서 토크센서
HITEC | 90415
작성자 관리자

＊ 주요정보

Maker
HITEC
Model
90415
Range
.
Output
Analog & Frequency
PDF
Description

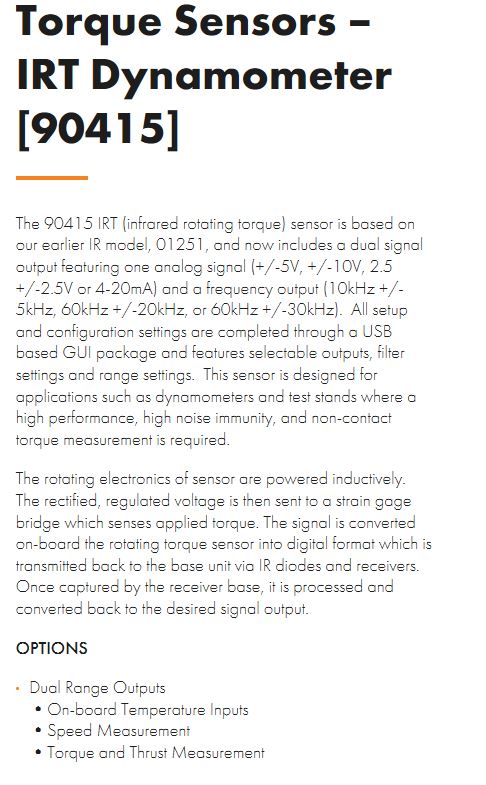

Torque Sensors – IRT Dynamometer

＊ 추가설명

90415

Web site : https://www.hitecsensors.com/

FEATURES
●  High frequency response and accuracy
●  Voltage, current and frequency signal outputs – GUI selectable
●  No bearings or moving parts
●  On-board shunt calibration
●  Increased gap tolerance for the base unit
●  Signal interrupt indication
●  Single piece sensing element
●  High immunity to signal noise
●  No brush induced signal interference
●  High operating RPM
●  Custom flange configurations available
●  Selectable digital filters down to 1Hz
●  No pots or dip switches
●  Software utility via USB interface
●  Software allows for realtime data recording.
●  Selectable output ranges
목록
총 게시물 24 개, 페이지 1
  • Maker
    HITEC
    Model
    01090
    Range
    100 - 10,000 in.lb
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensors – Keyed Shaft
  • Maker
    HITEC
    Model
    01100
    Range
    100 - 20,000 in.lb
    Output
    mV/V
    PDF
    Description
    Torque Sensors – Rotary Shaft with Brush Lift
  • Maker
    HITEC
    Model
    01324
    Range
    50 in.oz. - 20,000 in.lb.
    Output
    mV/V
    PDF
    Description
    Torque Sensors – Rotary Shaft Slip Ring
  • Maker
    HITEC
    Model
    01424
    Range
    50 in.oz - 100,000 in.lb
    Output
    +/-5V or +/-10V
    PDF
    Description
    Torque Sensors – Rotary Shaft Digital Non-contact
    • 열람중
  • Maker
    HITEC
    Model
    90415
    Range
    .
    Output
    Analog & Frequency
    PDF
    Description
    Torque Sensors – IRT Dynamometer
  • Maker
    HONEYWELL
    Model
    1604
    Range
    5 - 11300 N.m
    Output
    mV/V
    PDF
    Description
    Standard Rotating Shaft Torque Sensor
  • Maker
    HONEYWELL
    Model
    1800
    Range
    10 - 11300 N.m
    Output
    mV/V
    PDF
    Description
    Enhanced Accuracy Rotary Torque Sensor
  • Maker
    FUTEK
    Model
    TAT200
    Range
    50 - 100 in.oz
    Output
    mV/V
    PDF
    Description
    Mini Screw Driver Reaction Torque Sensor
  • Maker
    FUTEK
    Model
    TDF400
    Range
    5 - 1000 in.oz , 100 - 500 in.lb
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensor – Flange
  • Maker
    FUTEK
    Model
    TFF350
    Range
    100 - 3000 in.lb
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensor
  • Maker
    FUTEK
    Model
    TFF400
    Range
    0.04 - 56 N.m
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensor with Thru Hole Center
  • Maker
    FUTEK
    Model
    TFF425
    Range
    0.04 - 56 N.m
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensor with Thru Hole Center
  • Maker
    FUTEK
    Model
    TFF600
    Range
    2,000 - 10,000 in.lb
    Output
    mV/V
    PDF
    Description
    Reaction Torque Sensor with Thru Hole Center
  • Maker
    FUTEK
    Model
    TRD305
    Range
    6 - 1000 N.m
    Output
    mV/V
    PDF
    Description
    Rotary Torque Sensor – Square-Drive with Encoder
  • Maker
    FUTEK
    Model
    TRH300
    Range
    2 - 20 N.m
    Output
    mV/V
    PDF
    Description
    Rotary Torque Sensor - Hex Drive
