유량센서

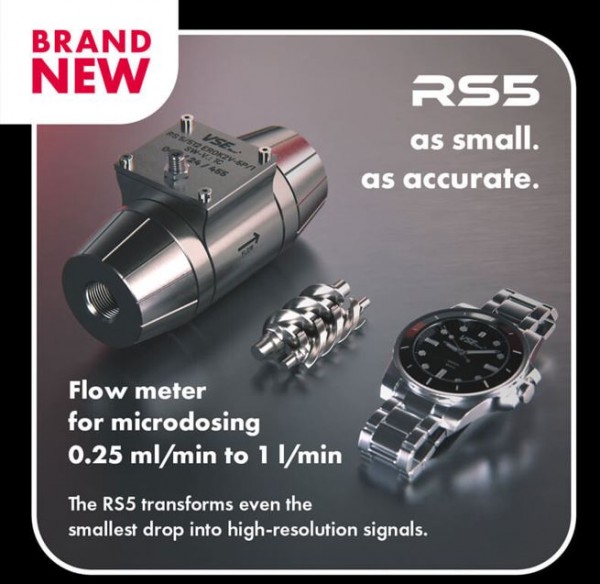

VSE RS 5 and RS 10

Web site : https://vse-flow.com/en/

https://www.youtube.com/watch?v=hu_NzdVYmbc

https://www.youtube.com/watch?v=dHJq6peMeQ8

Advantages
●  Pulsation-free measurement
●  Lowest pressure losses
●  Short response time due to innovative rotor profile and reduced mass
●  Highest functionality due to intelligent sensor technology
●  Gentle fluid measurements

Performance data
●  Flow range 0.00025 to 1(5) l/min /  0.0005 to 2(10) l/min
●  Measuring accuracy  ± 2% relative to the measured value
●  Repeatability ± 0.5% under the same operating conditions
●  Fluid temperature  -30°C ... +80°C
●  80 kHz (filter enabled), 200 kHz (filter disabled)
●  Viscosity range  500 … 1,000,000 mPas

Applications
●  Measuring, controlling, and regulating high viscosity fluids
●  Measuring, controlling, and regulating in low flow ranges
●  Measuring, controlling, and regulating when passing through zero
●  Measuring, controlling, and regulating in both flow directions
●  Measuring, controlling, dosing, and filling of small volumes
