Standard
A PVC jacket over a flat steel ribbon monocoil is the standard cable jacket, which is an excellent combination for general purpose usage.

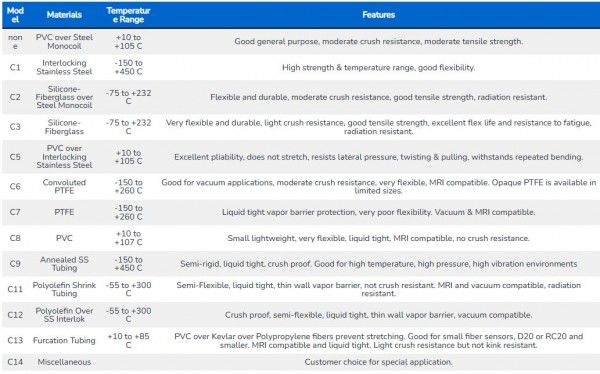

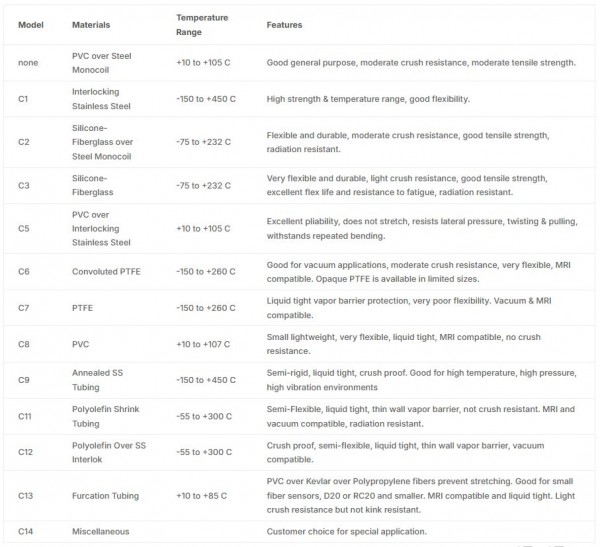

Alternatives
Interlocking Stainless Steel, Option C1, is the most popular alternative jacket, providing the highest temperature capability and maximum crush resistance with good flexibility.

Bending Radius
Fiber optic cables sometimes are routed thru and around machinery. A rule of thumb when specifying jackets:

For Option C1, minimum bend radius is 4x the jacket OD

Flexible jackets like C3, C8, C11, minimum bend radius could be as small as 2x OD

Vacuum
For vacuum & cryogenic applications, low outgassing materials are required. SS Interlock, PTFE and polyolefin are good choices.

Notes
Sensors with the longest cables have 2x higher noise levels.

Please consult the factory when combining Options B,E and/or H.°C
