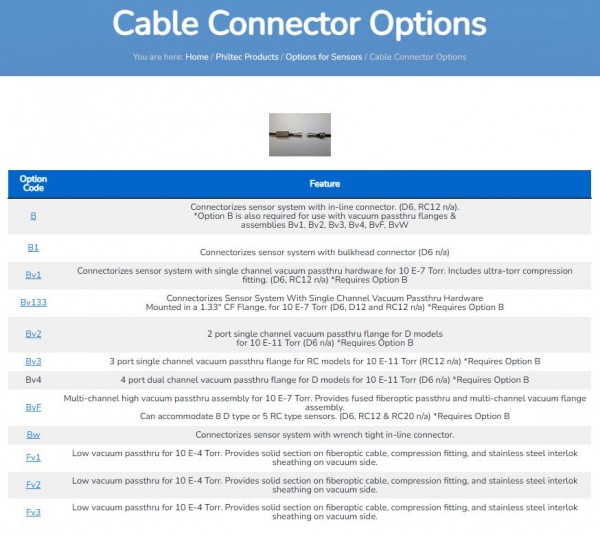

B Connectorizes sensor system with in-line connector. (D6, RC12 n/a). *Option B is also required for use with vacuum  passthru flanges & assemblies Bv1, Bv2, Bv3, Bv4, BvF, BvW

B1 Connectorizes sensor system with bulkhead connector (D6 n/a)

Bv1 Connectorizes sensor system with single channel vacuum passthru hardware for 10 E-7 Torr. Includes ultra-torr compression fitting. (D6, RC12 n/a) *Requires Option B

Bv133 Connectorizes Sensor System With Single Channel Vacuum Passthru Hardware
Mounted in a 1.33″ CF Flange, for 10 E-7 Torr (D6, D12 and RC12 n/a) *Requires Option B

Bv2 2 port single channel vacuum passthru flange for D models
for 10 E-11 Torr (D6 n/a) *Requires Option B

Bv3 3 port single channel vacuum passthru flange for RC models for 10 E-11 Torr (RC12 n/a) *Requires Option B

Bv4 4 port dual channel vacuum passthru flange for D models for 10 E-11 Torr (D6 n/a) *Requires Option B

BvF Multi-channel high vacuum passthru assembly for 10 E-7 Torr. Provides fused fiberoptic passthru and multi-channel vacuum flange assembly.
Can accommodate 8 D type or 5 RC type sensors. (D6, RC12 & RC20 n/a) *Requires Option B

Bw Connectorizes sensor system with wrench tight in-line connector.

Fv1 Low vacuum passthru for 10 E-4 Torr. Provides solid section on fiberoptic cable, compression fitting, and stainless steel interlok sheathing on vacuum side.

Fv2 Low vacuum passthru for 10 E-4 Torr. Provides solid section on fiberoptic cable, compression fitting, and stainless steel interlok sheathing on vacuum side.

Fv3 Low vacuum passthru for 10 E-4 Torr. Provides solid section on fiberoptic cable, compression fitting, and stainless steel interlok sheathing on vacuum side.
