마그네틱변위센서

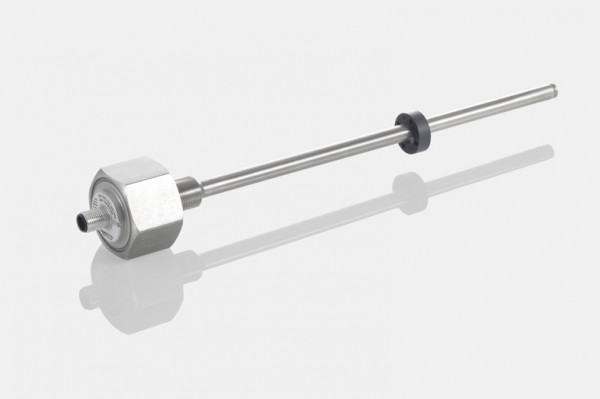

TM1 Screw Flange

Web site : https://www.novotechnik.de/

features
●  For integration in pneumatic and hydraulic cylinders
●  Touchless magnetostrictive measurement technology
●  Operating pressure up to 350 bar, peaks up to 450 bar
●  Ring-shaped position marker does not contact sensor
●  Unlimited mechanical life
●  No velocity limit for position marker
●  Absolute output
●  Outstanding accuracy performance up to 0.04 %
●  Wide range of supply voltage
●  Optimized for use in mobile applications with highest EMC
requirements such as ISO pulses and high interferences to ISO
11452, exceeds E1 requirements
●  Other configurations see separate data sheets
