NOVOTECHNIK | LWX003
작성자 관리자

* 주요정보

Maker
NOVOTECHNIK
Model
LWX003
Range
up to 750 mm
Output
potentiometric (Max 42VDC)
PDF
Description

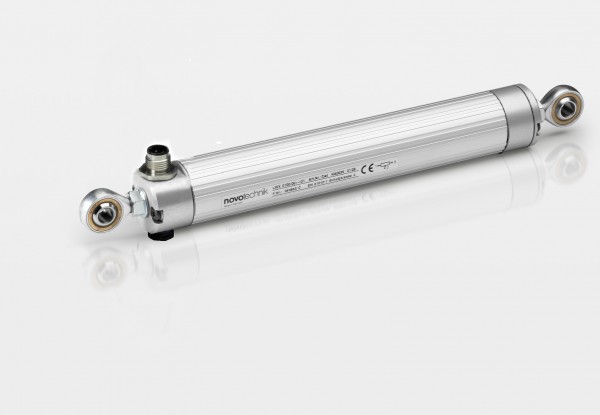

Transducer Pivot head mounting potentiometric

* 추가설명

LWX003

Web site : https://www.novotechnik.de/

features
●    protection class IP67
●    all-metal housing
●    corrosion resistant
●    differential pressure com- pensation system with GORE membrane - compensates for pump effect of push rod movement
●    high vibration resistance
●    suitable for harsh environ- mental conditions (humidity, oil, dust)
●    double beared actuating rod
●    mountable via low-backlash pivot heads with a large angle of free movement (up ±12.5 °)
●    outstanding linearity up to ±0.04 %
●    resolution better than 0.01 mm
●    long life up to 50 million movements, depending on application
●    cable or connector version available
●    version IP65 see data sheet LWG
●    shaft protected version see data sheet LWX, model 004
총 게시물 19 개, 페이지 1
  • Maker
    CONTELEC
    Model
    WL
    Range
    10, 25, 50, 75 ,100mm
    Output
    voltage divider
    PDF
    Description
    Potentiometer conductive plastic linear
  • Maker
    CONTELEC
    Model
    LAL200_400
    Range
    20, 40 mm
    Output
    voltage divider
    PDF
    Description
    Potentiometer conductive plastic linear
  • Maker
    CONTELEC
    Model
    KL
    Range
    10, 25, 50,75 100mm
    Output
    voltage divider
    PDF
    Description
    Potentiometer conductive plastic linear
  • Maker
    NOVOTECHNIK
    Model
    LFP
    Range
    Standard 50 mm up to 500 mm in 50 mm steps,
    Output
    Potentiometric (Max 30VDC)
    PDF
    Description
    Potentiometric Sensors with membrane collector
  • Maker
    NOVOTECHNIK
    Model
    LWG
    Range
    up to 750 mm
    Output
    potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducers Pivot head mounting potentiometric
  • Maker
    NOVOTECHNIK
    Model
    LWH
    Range
    up to 900 mm
    Output
    potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducers potentiometric
  • 열람중
  • Maker
    NOVOTECHNIK
    Model
    LWX003
    Range
    up to 750 mm
    Output
    potentiometric (Max 42VDC)
    PDF
    Description
    Transducer Pivot head mounting potentiometric
  • Maker
    NOVOTECHNIK
    Model
    LWX004
    Range
    up to 750 mm
    Output
    potentiometric (Max 42VDC)
    PDF
    Description
    Transducer Pivot head mounting potentiometric
  • Maker
    NOVOTECHNIK
    Model
    PTN
    Range
    up to 250 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Resistance Elements
  • Maker
    NOVOTECHNIK
    Model
    PTP
    Range
    up to 300 mm
    Output
    potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducers potentiometric
  • Maker
    NOVOTECHNIK
    Model
    PTX
    Range
    up to 300 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Resistance Elements
  • Maker
    NOVOTECHNIK
    Model
    TEX ACTUATING ROD
    Range
    up to 300 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducer with actuating rod potentiometric
  • Maker
    NOVOTECHNIK
    Model
    TEX PIVOT
    Range
    up to 300 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducers Pivot head mounting potentiometric
  • Maker
    NOVOTECHNIK
    Model
    TEX RETURN SPRING
    Range
    up to 200 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducer with return spring potentiometric
  • Maker
    NOVOTECHNIK
    Model
    TLH
    Range
    up to 3000 mm
    Output
    Potentiometric (Max 42VDC)
    PDF
    Description
    Position Transducers potentiometric
